Ranger 35/47
The Ranger Virtual Binocular is a hand-held display designed for professional training and simulation applications. The Ranger features dual SXGA OLED microdisplays with a choice of focus-adjustable eyepieces optimized for either a circular 35 degree field-of-view or a rectangular 47 degree diagonal field-of-view.
The Ranger 35 is ideal for training applications derived from real-world scenarios that need to emulate the round aperture in real binoculars. Developers can render a software mask on the Ranger 35 to achieve the desired effect with a 35 degree round FOV.
By comparison, the Ranger 47 is a versatile stereoscopic binocular display for applications that benefit from the full-screen visuals of the simulator.
Both models include a central hinge for IPD adjustments. Stereopsis is supported via two independent video inputs. The Ranger has an external mounting plate that accommodates industry standard motion trackers. The Ranger provides 4 programmable USB joystick-compatible buttons, plus a z-axis scroll wheel, offering developers and users a wide array of interactivity within their applications.
Includes standard one year warranty.
Technical Specifications
Optical
FOV, Circular
35° (RANGER 35)
FOV, Vertical
28° (RANGER 47)
FOV, Horizontal
36° (RANGER 47)
FOV, Binocular (diagonal)
47° (RANGER 47)
Pupil Size
5, Non-Real mm
Eye Relief
13 mm (RANGER 35) / 15 mm (RANGER 47) / 15 mm (RANGER 47 Tactile)
Geometric Distortion
< +9% (RANGER 35) / < +10% (RANGER 47) / < +10% (RANGER 47 Tactile)
Brightness (Max.)
40 fL
Contrast (Min.)
10000:1
Image Defect Criteria
Please contact us
Spatial Resolution
2.1 arcmn/pxl (RANGER 35) / 1.6 arcmn/pxl (RANGER 47)
Microdisplay
Display Technology
Organic Light Emitting Diode (OLED)
Resolution
SXGA 1280 x 1024
Color Depth
24-bit (8 bits R, G, B)
Video
Video Input Format
SXGA 1280 x 1024 @ 60 Hz
Latency
< 0.002 ms
Power
Power Consumption
5 W
Power Source
100-240 VAC, 50-60 Hz, 0.4 A (IEC Type C13 Cord)
Physical
Size (envelope)
8.1 L X 6.4 W X 3.0 H in (20.57×16.26×7.62 mm)
Mass
855 g
Cable Length
5 m

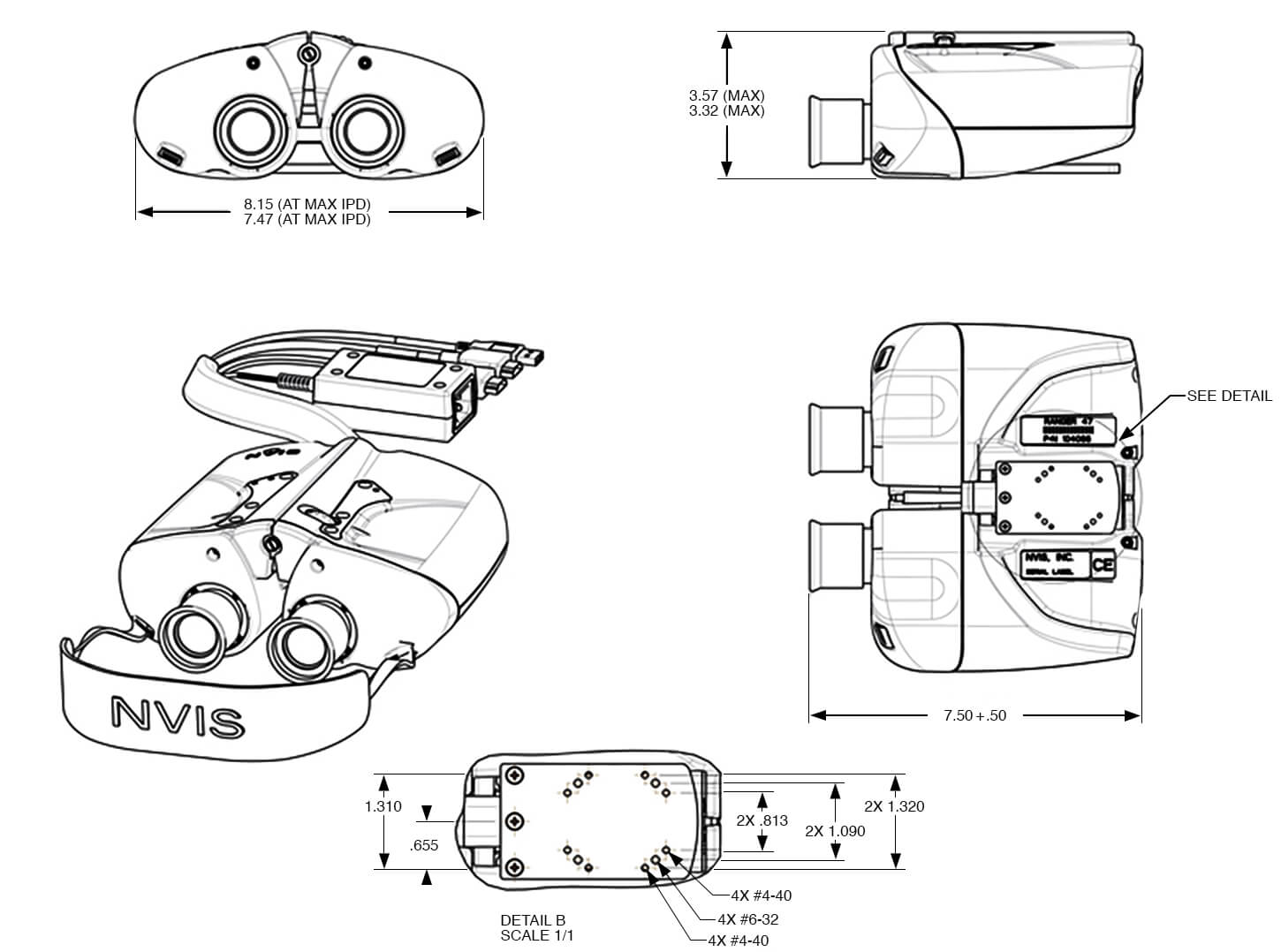

Technical Drawing
