Fingertracking
Vibro-tactile or pure
The Fingertracking device is an add-on to the ART tracking system, which allows you to track the orientation of the hand and the position of the fingers.
ART’s Fingertracking has the world’s highest fingertip accuracy of all variations of glove technology. It is wireless, works for one as well as for both hands (4 hands with 2 users) and is available in two versions:
- 3finger with tactile feedback
- 5finger pure optical
ART’s Fingertracking convinces
- LEDs on fingertip – unique feature of ART’s Fingertracking
- haptic feedback – as option
- numerous third-party software supported

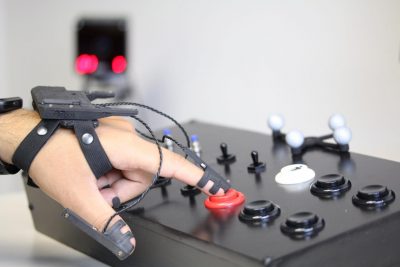

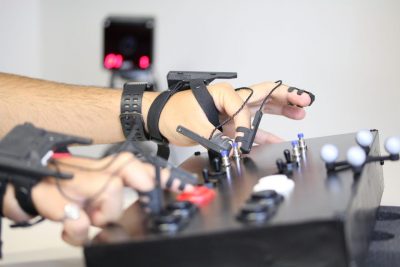

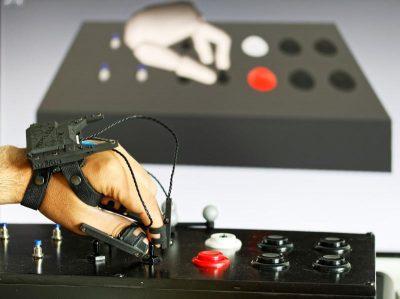

Vibro-tactile Fingertracking2 in industrial applications

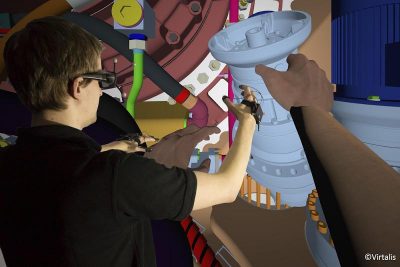

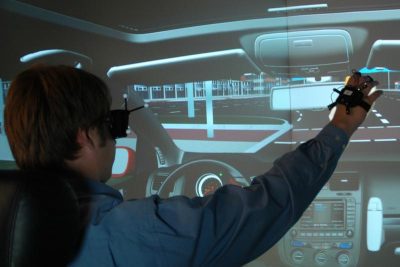

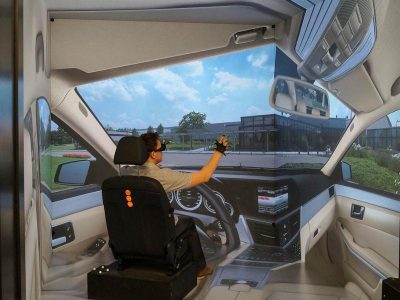

ART’s vibro-tactile Fingertracking allows the integration of the hands of 1-2 persons acting in virtual simulations, with a millimeter accuracy of the finger movement. Also, additional objects (e.g., steering wheel, dashboard, rearview mirror) can be determined and animated with the same accuracy. The vibro-tactile feedback enables the user to feel the vibration at his/her fingertips when touching objects in the virtual world. The system can be used for ergonomics analysis, maintenance simulations, buildability analysis and other applications that require the interaction of a hand with objects in the virtual space.
Fingertracking2
- Compatibility with high frame rates of AT7-80, ARTTRACK6/M and ARTTRACK5
- Various sizes for finger thimbles
- Active hand target for affixing to the back of the hand. Synchronization is provided with a modulated flash and the low voltage power is provided with a rechargeable battery.

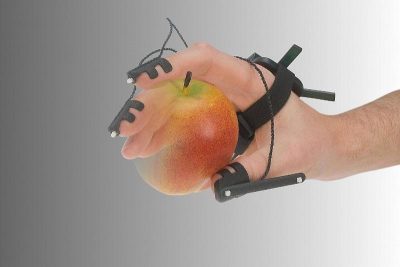

- The active finger markers consist of IR LEDs with diffusing sphere, a fixture for the finger tip and flexible wires. They are time-sequentially addressed and controlled by the active hand target unit.
- Support of numerous third-party software, see document « ART Connectivity«
Additional Features for Fingertracking2 Tactile
- Haptic feedback in three fingers
- Intensity of the vibration can be controlled
The output data consists of
- Position and orientation of the back of the hand
- Number of tracked fingers as well as a distinguishing value for right and left hands,
- Position and orientation of the outermost phalanx, given in the hand coordinate system – Together with a radius, the position and orientation of the finger tip can be estimated.
- Angles between the single phalanxes as well as their lengths – These values are estimated using tracked markers and empirical data.
Prime II ART gloves combine Manus fingertracking with ART tracking
A new interface allows the combination of Manus fingertracking gloves with ART tracking systems. The Prime II ART gloves are upgradable with haptic feedback.They will allow ART users to have no occlusion challenges with finger tracking.
Furthermore: Via the new interface you can also use ART targets in Manus Motion Capture software.
Have a look at the extended possibilities and see how you can use MANUS finger tracking inside of your ART environment: Watch video: https://youtu.be/Br66ZB6ngVg
