CyberForce

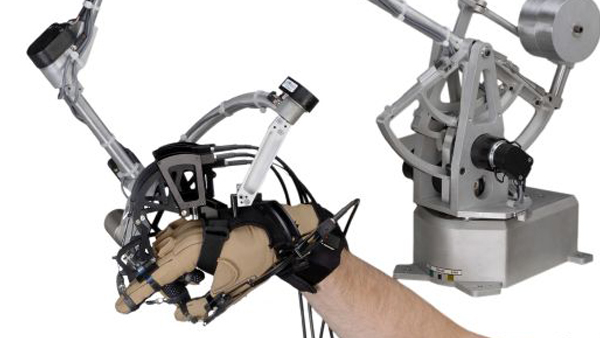

The CyberForce system is an option designed to work with the CyberGrasp exoskeleton, the award-winning, lightweight, force-reflecting system that fits over a CyberGlove data glove and adds resistive force feedback to each finger. The CyberForce system is produced under license from SensAble Technologies, Inc.

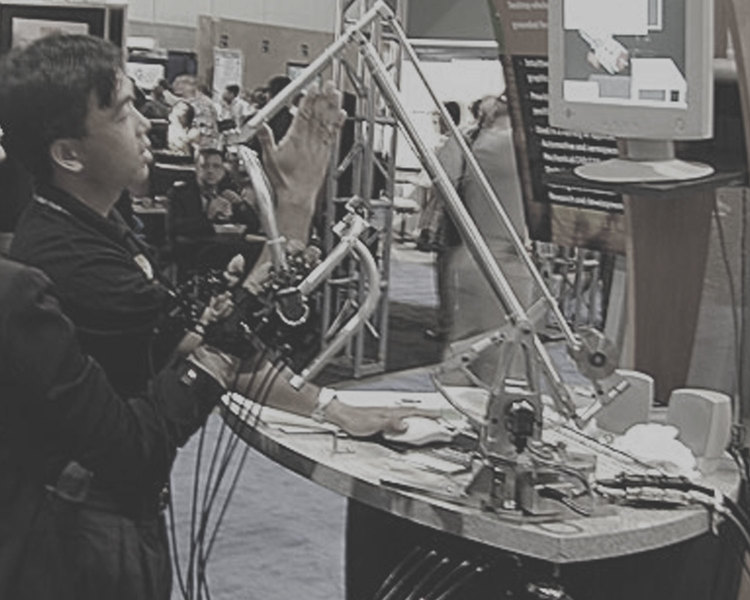

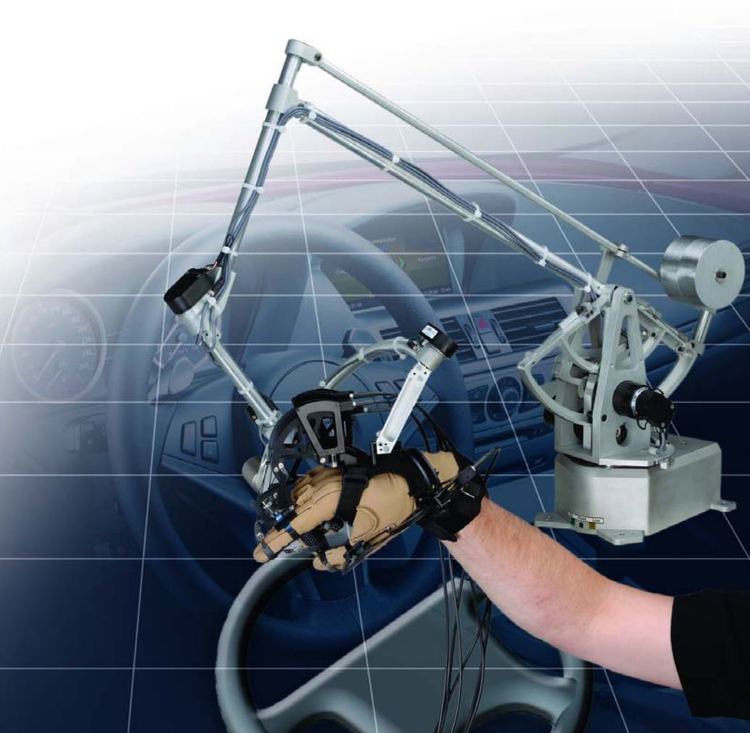

Using the CyberForce system together with the CyberGrasp exoskeleton, you can literally “hang your hand” on a virtual steering wheel, sense weight and inertia while picking up a “heavy” virtual object, or feel the impenetrable resistance of a simulated wall. The CyberForce option allows you to intuitively explore and interact with simulated graphical objects via the most natural interface possible – the human hand.
Specifications:
- Force Generation: 8.8 N max (6.6 N min)
- Armature Weight: 19 lbs (8.6 kg)1
- Workspace: 12 x 12 in (30.5 x 30.5 cm) swept through 133 degrees with radius of 20 in (51 cm).2 See datasheet for diagram.
- Position Resolution: 0.0024 in (0.06mm) max; 0.0029 in (0.073 mm) min3
- Orientation Resolution: 0.09 degrees
- Instrumentation unit: Force Control Unit (FCU) and power supply included
- Interface: Ethernet (10/100Mbps)
- Weight does not include CyberGrasp system. ↩︎
- Position resolution and force generation specifications apply to the described workspace.Larger physical limits for the complete workspace are depicted on this diagram. ↩︎
- Based on encoder resolution and as reported by software. Actual resolution is a function of armature compliance, loading, and friction. ↩︎
More Information
Related Products
The MoCap Glove takes what the original CyberGlove products have established with 20 years of experience, producing improved and new
The wireless CyberGlove II motion capture data glove is fully instrumented with up to 22 high-accuracy joint-angle measurements. It uses
This new deviation of the CyberTouch product line incorporates vibrotactile sensors into the inside of the fingertips.
The CyberTouch system is a tactile feedback option for CyberGlove Systems's wired CyberGlove instrumented glove. It features small vibrotactile stimulators
The CyberGrasp system is an innovative force feedback system for your fingers and hand. It lets you "reach into your

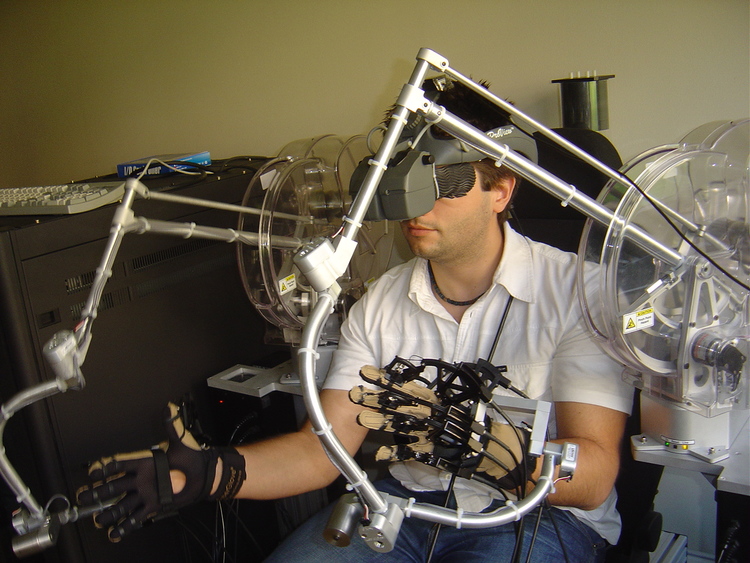

The Haptic Workstation is a fully integrated simulation system providing right and left whole-hand haptic feedback, immersive 3D viewing, and
