Phantom Touch™
Haptic Device
The Phantom Touch™ is a mid-range, professional haptic device used in research, 3D modeling and OEM applications

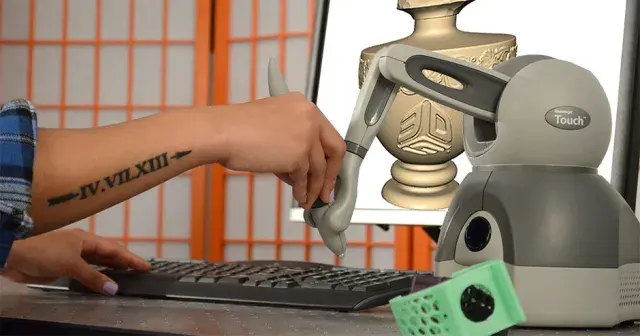

Touch is a motorized device that applies force feedback on the users’ hand, allowing them to feel virtual objects and producing true-to-life touch sensations as users manipulates on-screen 3D objects. Leading companies integrate Touch haptic devices into their work to achieve compelling solutions using the realistic sense of touch.
You can use Touch haptic devices in diverse applications including simulation, training, skills assessment, rehearsal, virtual assembly, robotic control, collision detection, machine interface design, rehabilitation, mapping, and more.
When used with the OpenHaptics® developer software toolkit, the Touch allows developers to design and deploy haptic programs rapidly, do mash-ups into existing applications, try out new ideas, and create haptically-enabled products.
Touch Features
The award-winning Touch haptic device provides an affordable desktop solution and is ideal for customers who are performing certain types of haptic research.
- Portable, compact footprint and Ergonomic design
- Compact force feedback workspace
- 6-degrees-of-freedom positional sensing
- 3-degrees-of-freedom force feedback
- USB 2.0 or 3.0
- Comfortable molded-rubber stylus with textured paint
- Removable, customizable stylus
- Two integrated momentary stylus switches
- Stylus-docking inkwell
- Supports OpenHaptics® SDK, and Unity and Unreal Plug-ins
- Made of metal components and injection-molded plastics
System Requirements
| Operating System | 64-bit Windows 10 and 11 |
| Processor | Intel i5 / i7, 5th Generation or greater CPU, Minimum 2.5 GHz frequency |
| RAM | 4 GB |
| Graphics Card | Minimum 256 MB VRAM (Install the latest drivers) |
| Disk Space | 512 MB |
| Display Resolution | 1280 x 800 (Minimum) |
| Interface | USB 2.0 / 3.0 port or USB Hub that supports USB 2.0/ 3.0. *Use only USB A to B cable provided by 3D Systems. |
