Compare PST trackers
PST optical tracker comparison

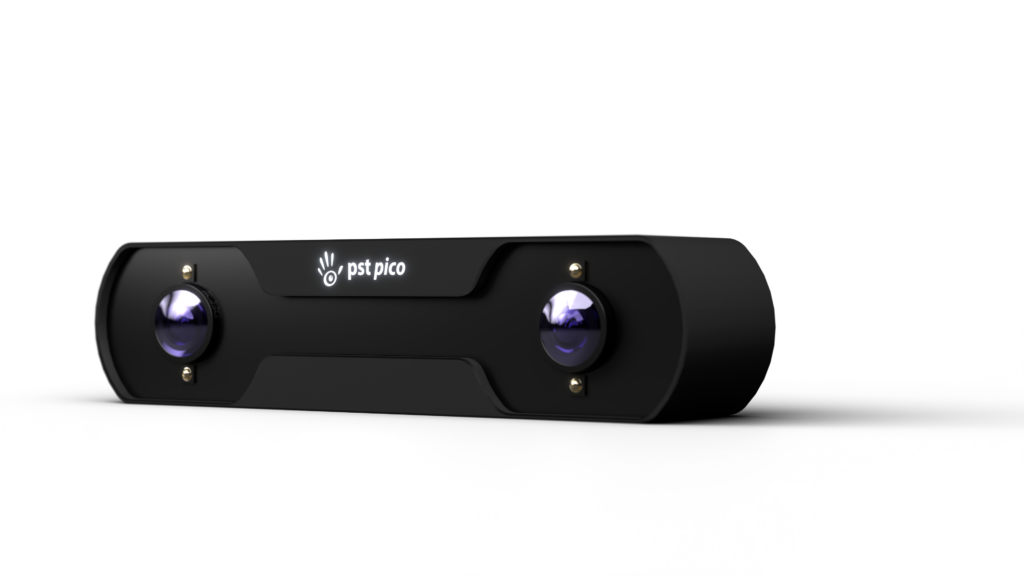

PST Pico

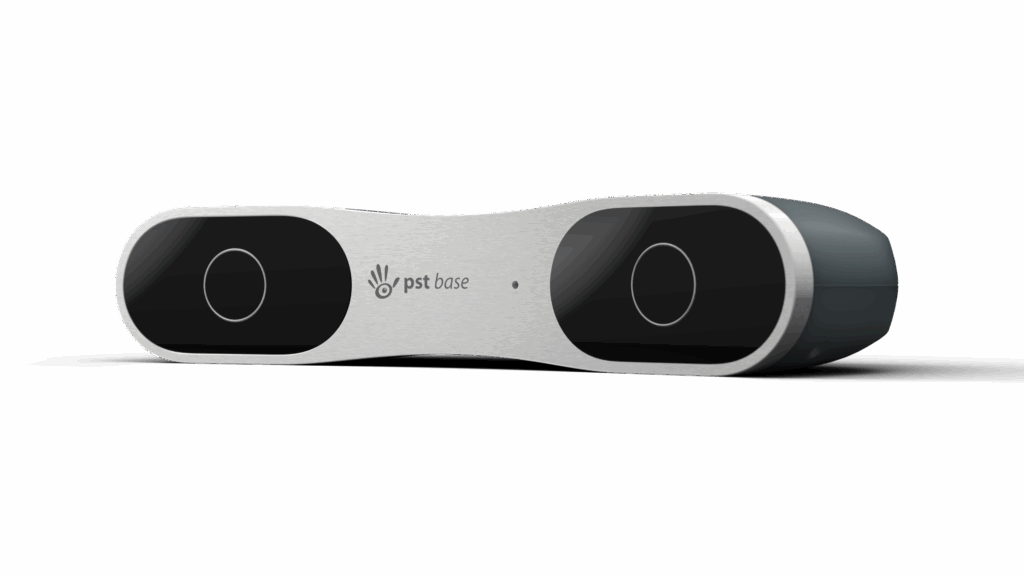

PST Base / Base HD

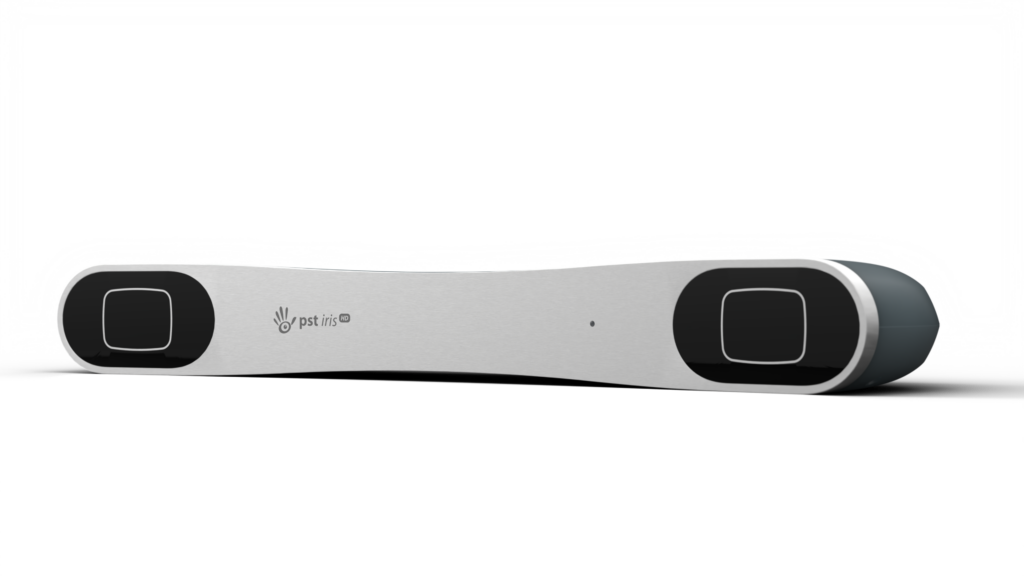

PST Iris / Iris HD
Developed for
Close Range Precision, Compact and Lightweight
Mid Range Precision Tracking
Long Range Precision Tracking
Optimal working distance (tracker location to center the tracked space)
< 1 m
1 – 2 m
2m
Tracking range
5 cm up to 1.5 m
20 cm up to 3 m
50 cm up to 5 m
Field of View
110°x100°
60° x 45°
75° x 70° (HD)
Tracking volume HD > 2x Base
65° x 45°
80° x 70° (HD)
Tracking volume HD > 2.5x Iris
Accuracy
< 1mm, <0.5°
< 0.5mm, <0.5°
< 0.5mm, <0.5°
Dimensions (W x H x D)
15 x 4 x 4 cm
31 x 6 x 14 cm
50.5 x 6 x 9 cm / 50.5 x 6 x 12 cm (HD)
Weight (excluding cables)
< 0.2 kg
Approx. 1 kg
Approx. 1.2 kg
Max. Refresh Rate
55 Hz
120 Hz / 200 Hz (HD)
120 Hz / 200 Hz (HD)
Operating System
Windows 10, 11, Linux
Windows 10, 11 /
Windows 10, 11, Linux (HD)
Windows 10, 11 /
Windows 10, 11, Linux (HD)
Hardware Interface
2x USB 3.0
1x USB 2.0 /
2x USB 3.0 (HD)
1x USB 2.0 /
2x USB 3.0 (HD)
Multi PST Setup
No
Yes (PST Base)
Yes(PST Iris)
Latency
18 ms
5-8 ms
5-8 ms
Power Consumption
Max. 15 W
Max. 12 W
Max. 12 W
Choosing the right PST tracker
PST Pico: Best for short-range tracking in compact environments like head-mounted displays (HMDs) or small devices.
PST Base: Ideal for mid-range tracking in simulation environments with precise accuracy.
PST Base HD: Enhanced version of the PST Base with improved resolution for more demanding simulations.
PST Iris: Suited for long-range tracking, such as in industrial or medical simulations.
PST Iris HD: The premium option, offering superior accuracy for high-definition, long-range tracking needs.
Each tracker is designed to meet specific tracking needs, from short to long-range applications, ensuring flexibility and precision across industries.
Note: The wider the tracker, the better it performs at larger distances, with the PST Pico being best suited for short-range, PST Base for mid-range, and PST Iris excelling at long-range application.
