T-REC

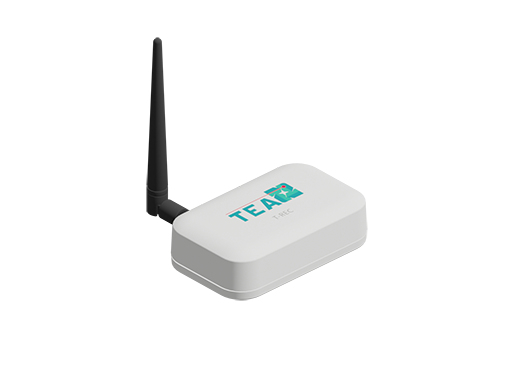

T-Rec receiver enables real-time data acquisition and measurement synchronisation
The T-Rec is a long-range receiver designed for T-Sens wireless sensors. It ensures fast and reliable data transmission to a PC via a USB connection.
Ideal for remote measurement systems, the T-Rec also features synchronization with third-party devices through Trigger In/Out ports, allowing seamless integration into your test or data acquisition setup.
Specifications
Dimensions
100mm x 62mm x 31mm
Weight
130g
Number of sensors supported
1 to 16
Recommended range
15m
Data transfer
USB 2.0
Power supply
USB 2.0
Bandwidth / Sampling rate
10 240 sps
Trigger input
1
Trigger output
1
Antenna
1
USB Type-B port
1
Streams to
CAPTIV-L7000/7000 Premier software
ErgoLife
T-Server
Trigger in/outwith Third-party devices
