T-Sens ECG
Wireless sensor for raw ECG signal measurement.
20The T-Sens ECG is a wireless ECG sensor designed for precise measurement of raw electrocardiographic (ECG) signals, ideal for applications in physiological analysis, biomedical research, and cardiovascular performance monitoring. Allows assessment of physiological load, stress, and fatigue in real-world working environments.
Two versions are available depending on electrode requirements:
- Ref. C2205 : equipped with snap connectors for use with standard disposable ECG electrodes

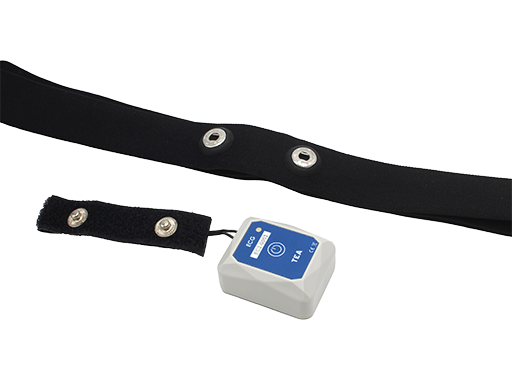

- Ref. C2204 : supplied with an integrated belt containing permanent, reusable electrodes
The sensor records raw ECG data in its internal memory, ensuring reliable storage of signals for detailed post-analysis.
Specifications
Dimensions
45 mm x 35 mm x 20 mm
Weight
30 g (sensor only), 36 g with electrodes
Sampling frequency
256 Hz (2048 Hz)
Resolution
16 bits
Measurement range
±2.4 mV / ±1.2 mV / ±0.8 mV
Real-time recording
YES – range 10 m
Internal memory recording
YES
Output data
raw data
Battery life
8 h typical
Charging time
3 h typical
Requires
a T-Rec, a charging dock, and a CAPTIV L7000 or T-Server
Typical applications
- Monitoring heart rate and cardiovascular workload
- Stress, vigilance, and recovery studies
- Integration in neuroscience or ergonomics protocols …
Intended users
- Ergonomists, neuroscience researchers, physiology labs, occupational health and QWL specialists.
