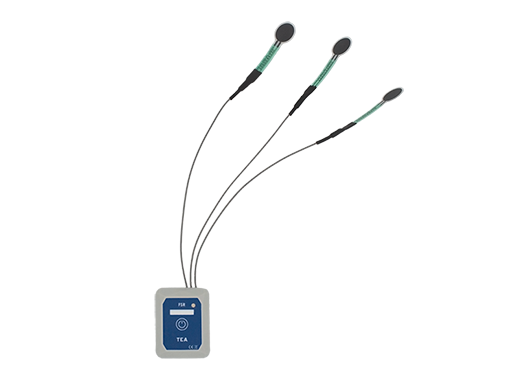

T-Sens FSR
Wireless sensor for force measurement (Force Sensing Resistor). This sensor is supplied with 3 standard cells for fingers (contact TEA for other sizes).
Force Sensitive Resistor sensor for measuring contact pressure or applied force. Compact and precise, ideal for analyzing load distribution and comfort on contact points.
Specifications
Dimensions
45 mm x 35 mm x 20 mm
Weight
30g sensor only, 36g with electrodes
Resolution
0.01 kg / cm2
Sampling rate
32 Hz/channel
Real-time recording
YES – up to 10m
Embedded memory recording
YES
Battery life
typically 8 hours
Charging time
typically 3 hours
Requires
a T-Rec, a charging dock, and a CAPTIV L7000 or T-Server
Typical applications
- Pressure mapping under fingers
- Assessment of prolonged postures (handling)
- Evaluation of comfort in tools or protective equipment
Intended users
- Ergonomists, equipment designers, research laboratories, product engineers.
