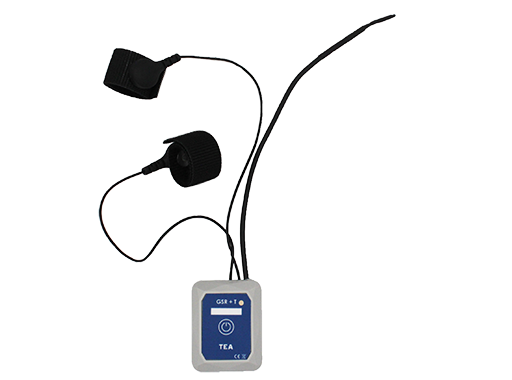

T-Sens GSR + TEMP
Wireless GSR+T°C sensor for measuring both skin conductance (GSR) and skin temperature.
Dual-sensor module measures emotional arousal and cognitive load during real or simulated activities.
Specifications
Dimensions
45 mm x 35 mm x 20 mm
Weight
30g sensor only, 36g with electrodes
Resolution
16 bits et 0.05°C
Sampling rate
32 Hz
Real-time recording
YES – up to 10m
Embedded memory recording
YES
Output data
raw data (2048 Hz) and RMS (128 Hz)
Battery life
typically 8 hours
Charging time
typically 3 hours
Requires
a T-Rec, a charging dock, and a CAPTIV L7000 or T-Server
Typical applications
- Stress and mental workload assessment
- Human-machine interaction and cognitive ergonomics
- Physiological monitoring in immersive VR training…
Intended users
- Neuroscience researchers, cognitive ergonomists, VR trainers, UX specialists…
