T-Sens GSR

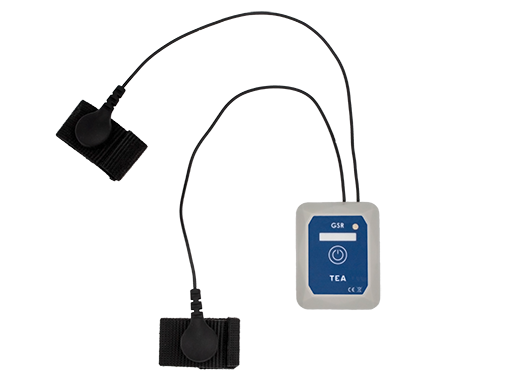

Wireless GSR sensor for skin conductance measurement. The two electrodes are positioned on the tip of two fingers.
Wireless GSR sensor measuring skin conductance as an indicator of emotional and stress responses. Ideal for linking physiological reactions to real-life professional or simulated situations.
Specifications
Dimensions
45 mm x 35 mm x 20 mm
Weight
30g sensor only, 36g with electrodes
Sampling rate
32 Hz
Real-time recording
YES – up to 10m
Embedded memory recording
YES
Battery life
typically 8 hours
Charging time
typically 3 hours
Requires
a T-Rec, a charging dock, and a CAPTIV L7000 or T-Server
Typical applications
- Stress and cognitive workload studies
- Vigilance and mental fatigue monitoring
- Emotional response tracking in VR or user testing …
Intended users
- Neuroscience researchers, ergonomists, occupational psychologists, UX designers…
