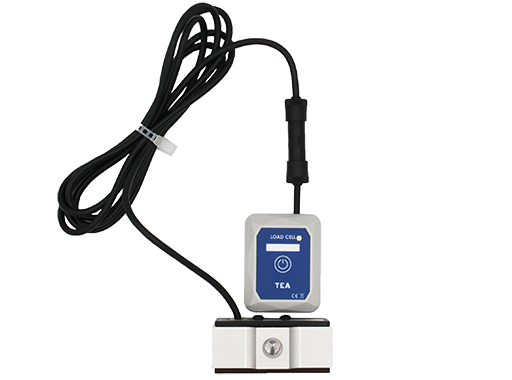

T-Sens Load Cell
Wireless force measurement sensor (push/pull) supplied with a load cell to be selected among a large variety of ranges. The load cell has two threaded holes which enable attachment on a bracket, trolley, or other fixation device.
Wireless sensor designed to measure applied forces on tools, handles, or supports. Enables quantification of physical effort and mechanical constraints in real tasks.
Specifications
Dimensions
45 mm x 35 mm x 20 mm
Weight
30g sensor only
Sampling rate
32 Hz
Resolution
16 Bits
Real-time recording
YES – up to 10m
Embedded memory recording
YES
Battery life
typically 8 hours
Charging time
typically 3 hours
Requires
a T-Rec, a charging dock, and a CAPTIV L7000 or T-Server
Typical applications
- Measurement of push, pull, or grip forces
- Validation of lifting or assistive devices
- Force analysis within OCRA or NIOSH ergonomic evaluations …
Intended users
- Industrial ergonomists, design engineers, HSE managers, exoskeleton developers.
