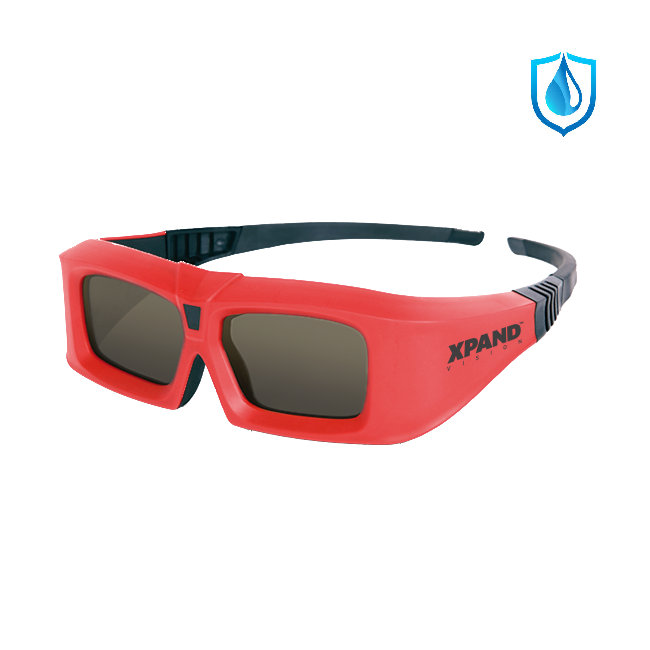

X101 glasses
XPANDVISION™ X101 Series prevents “IR black holes” in the theater by utilizing an optimal diode layout – making sure 100% of the viewers will have optimal 3D experience, regardless of their seat position.
XPANDVISION™ X101 Series components are built to work in extreme conditions, further endorsing XPANDVISION’s™ long-standing achievement of having the highest 3D reliability.
LONGER LAMP LIFE
Due to X101 Series increased light efficiency, DC projectors can be set to their normal lamp settings as opposed to increased lamp output settings which is required by competing 3D systems. This increases lamp life by at least 80%.
NO SILVER SCREEN
Standard white screens can be used for both 2D and 3D, thus eliminating unwanted “hot spots” created by 2D presentations on silver screens. With its focused light reflection back to the audience, a silver screen offers a narrower viewing angle as opposed to the lower gain matte screen which provides a much wider viewing angle, while offering the exact same 3D experience to EVERY seat in the auditorium.
REPLACEABLE BATTERIES
Each battery averages 250 hours of battery life. The batteries can be easily replaced by anyone with a special XPANDVISION™ provided key.
DURABILITY
XPANDVISION™ X101 Series active glasses are rugged and flexible. The glasses were designed with flex points, which extend the lifetime of the glasses. In rigorous, independent laboratory testing, the X101 glasses worked over 2000 shows, providing unbeatable costs per show.
AUTOMATIC “ON/OFF”
To ensure operation of the glasses at show time, to reduce theater operational interface and to better manage battery life, the X101 Series glasses turn “ON” and “OFF” automatically.
EASE OF DISTRIBUTION AND COLLECTION
To reduce the need for additional theater staffing and monitoring, XPANDVISION™ has developed and made available (optional), a well designed utility cart (3D Trolley) for efficient distribution, collection and storage of the glasses.
THE BRIGHTEST 3D SOLUTION
3D requires as much light as possible. XPANDVISION™ X101 Series features the fastest shutter technology for the brightest image. The XPANDVISION™ Cinema light efficiency using X101 Series glasses at 144hz has been increased to over 17%.
THE BRIGHTEST 3D SOLUTION
3D requires as much light as possible. XPANDVISION™ X101 Series features the fastest shutter technology for the brightest image. The XPANDVISION™ Cinema light efficiency using X101 Series glasses at 144hz has been increased to over 17%.
SECURED COMMUNICATION
For better communication and to eliminate “cross-talk” and “ghosting”, XPANDVISION’s™ X101 Series glasses operate with a secured IR signal.
100% DLP
XPANDVISION™ X101 Series is optimized to work with both 0.98 inch and 1.2 inch DLP Cinema chips.
EAS SECURITY TAG SYSTEM
XPANDVISION™ X101 Series now includes a standard EAS anti-theft tag device.
In order to utilize this security feature, anti-theft panels will be required which can be purchased from specialized suppliers in your region. Installation and power source requirements will be required by Exhibition as well.
EXTENDED IR RANGE
Extended IR range supporting the largest Cinemas in the world.
RADIO COMMUNICATION
To further eliminate potential cross talk, XPANDVISION™ X101 Series is designed to enable Radio communication between the glasses and emitters in future models.
TECHNICAL SPECIFICATIONS
Model
X101
3D Technology
Active Shutter Glasses
HFR Support
Yes
Frame weight
71 g (2.5 oz)
Lens size
57mm diagonal (2.2”)
Lens type
LCD
Contrast
300/1
Sync Method
IR
Lens Transparency
35% +/- 1 %
Frame Rate Frequency
96 – 240 Hz
Shuttering Frequency
48 – 120 Hz
Battery Life
250 hours
Battery Type
X-Battery
Temperature
5 – 45°C (41 – 113°F)
Compatibility
XPAND Cinema IR Protocol – Secured
More Information
Related Products

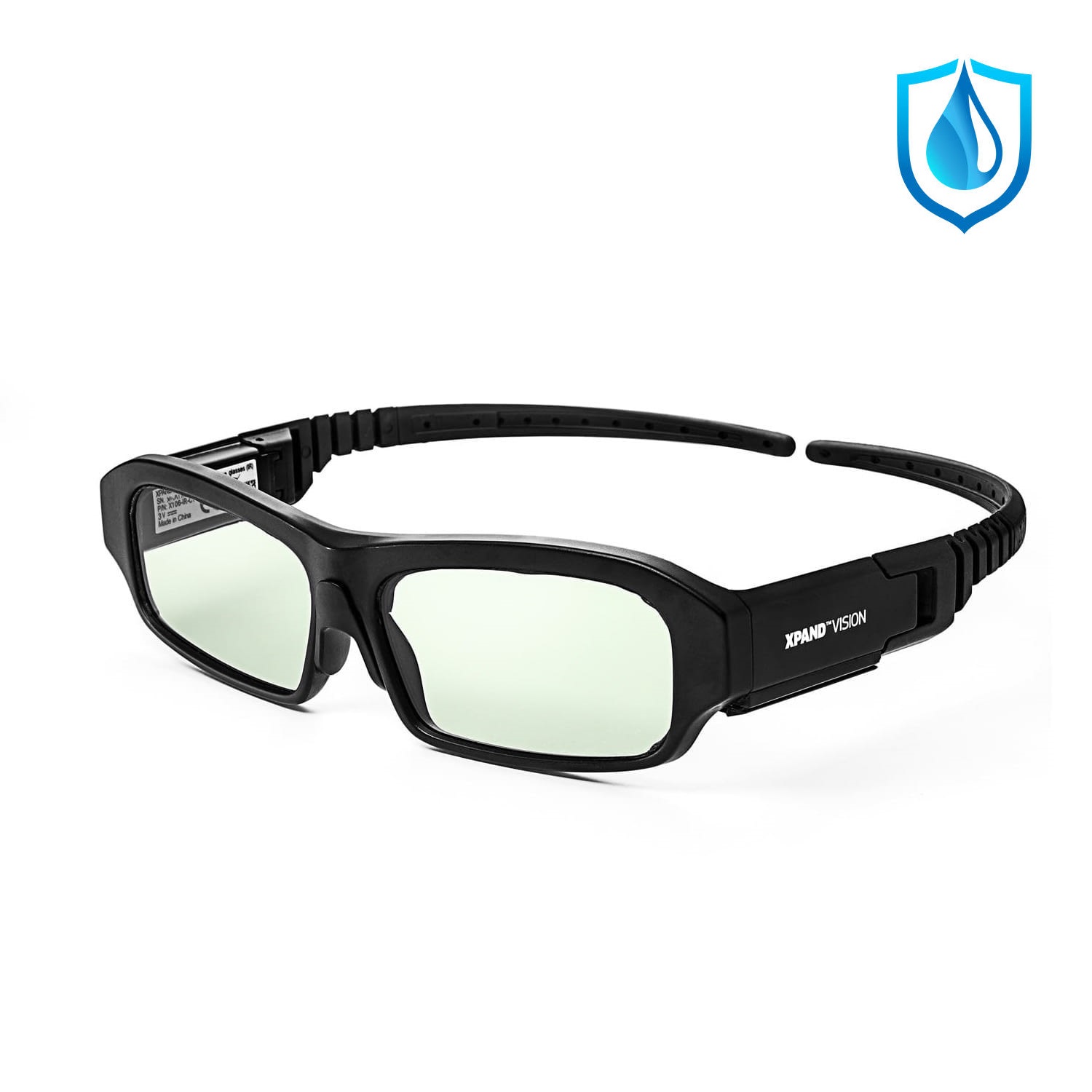

X106 Evolution by XPAND Vision are are washable with minimal environmental effect and minimal carbon footprint.
XPAND 3D Glasses are designed to have a light, stylish and ergonomic frame to ensure comfortable wear for everyone.
XPANDVISION™ DLP®-Link™ 3D Glasses were designed on the basis of XPANDVISION™’s home cinema quality 3D Glasses model to offer the

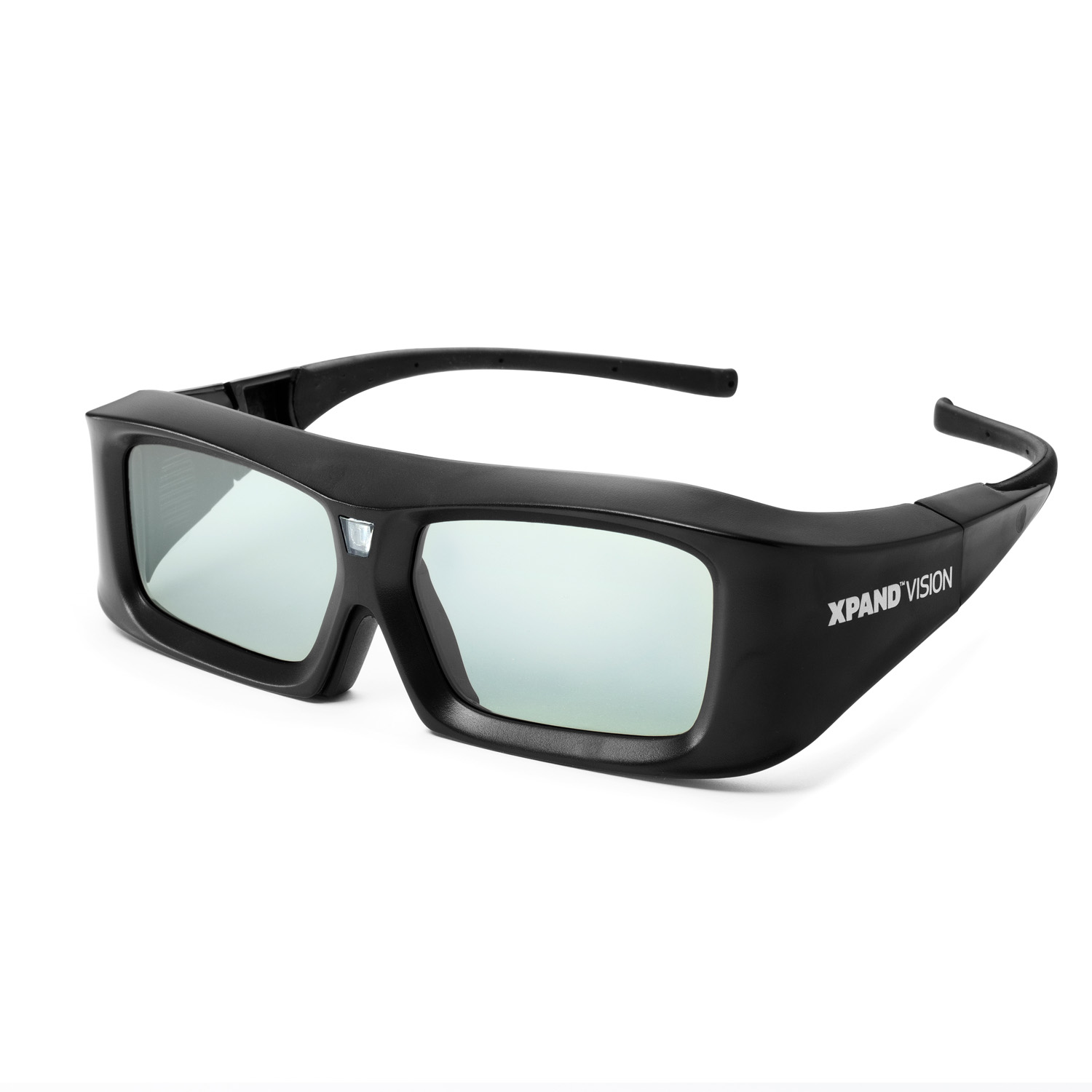

XPANDVISION™ Edux 3 3D Glasses (DLP®-Link, Model No. X103-Edux3) use DLP®-Link 3D synchronization and are compatible with all 3D DLP projectors.

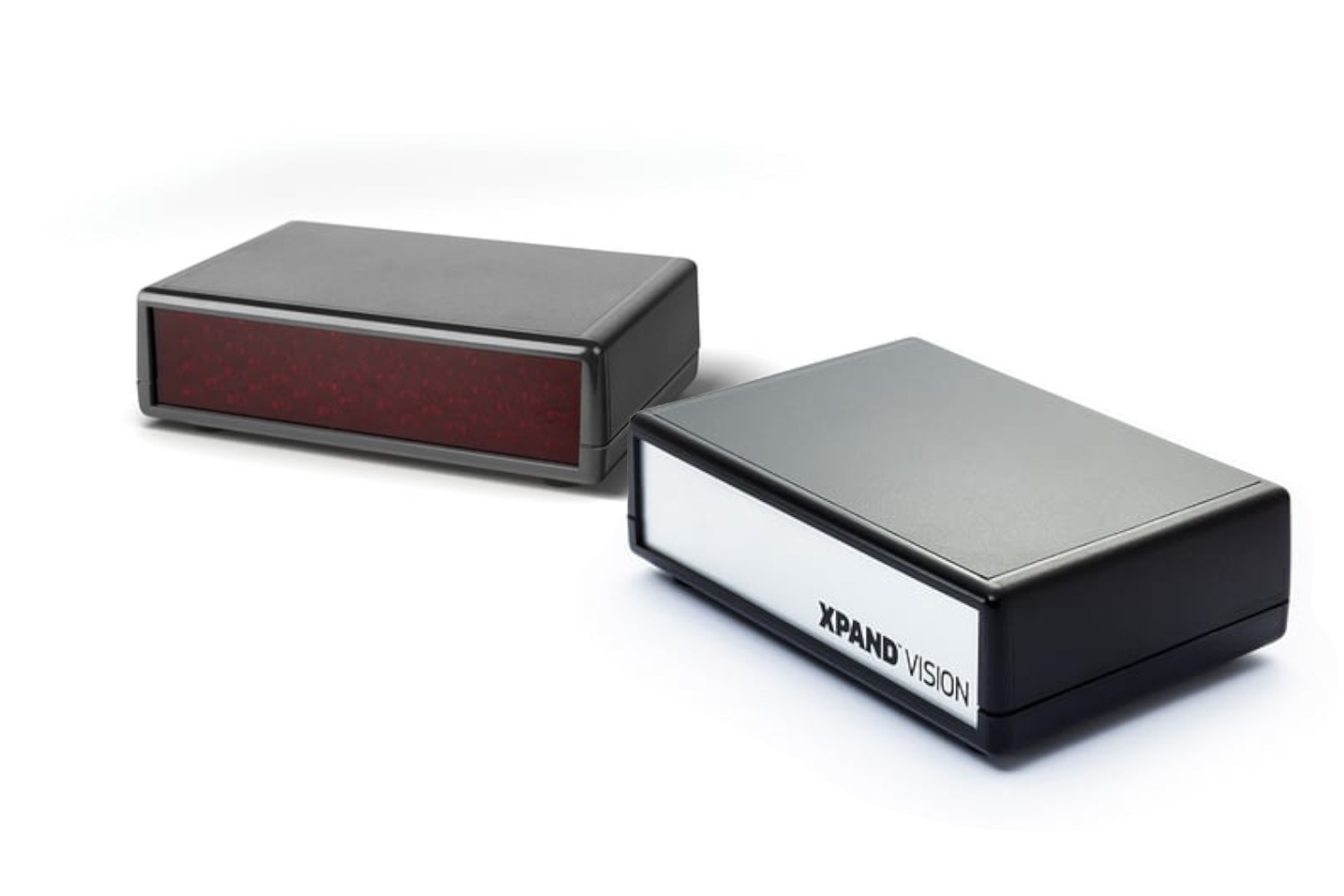

XPANDVISION™ 3D IR emitter system generates the infrared signal that synchronizes the active 3D glasses with the digital display device.
