Scout 35
The Scout 35 is a robust professional hand-held display designed for cost-sensitive, high-fidelity training and simulation. The Scout uses high-contrast OLED 1920×10280 microdisplays to provide superior visuals for all scenarios, including nighttime / low-light simulation.
The Scout has a user-accessible door that allows for industry standard motion sensors to be installed. The Scout provides six programmable USB joystick-compatible buttons, plus a z-axis scroll wheel, offering developers and users a wide array of interactivity within their applications. The Scout was designed for applications with sensitive budgets requiring an easy-to-use, professional binocular display.
Its versatile and durable design is ideal for a wide range of military applications requiring simulated binocular and bi-ocular military devices, as well as emerging medical training solutions that need to simulate 3D surgical microscopes.
Technical Specifications
Optical
FOV, Binocular (diagonal)
35° (Round)°
Overlap
100 %
Pupil Size
5 mm, Non-Real mm
Eye Relief
13mm
Geometric Distortion
-5.8% (Barrel)
Brightness (MAX)
46 fL
Contrast (Min.)
10000:1
Image Defect Criteria
Please contact us
Spatial Resolution
1.94 arcmn/pxl
Microdisplay
Display Technology
Organic Light Emitting Diode (OLED)
Resolution
1920 x 1080
Color Depth
24-BIT (8 bits per R,G,B)
Video
Video Input Format
Full HD 1080p 1920 x 1080 @ 60 Hz
Latency
<1 ms
Power
Power Consumption
USB or USB compatible
Power Support
USB host or charger
Power Input
+5V DC, 1 A
Physical
Size (envelope)
Scout 35: 6.53 L x 6.06 W x 2.97 H in (16.5×15.39×7.54 mm)
Scout 35 (NB): 6.53 L x 6.62 W x 2.97 H in (16.5×16.81×7.54 mm)
Mass
750 g
Cable Length
4.2 m

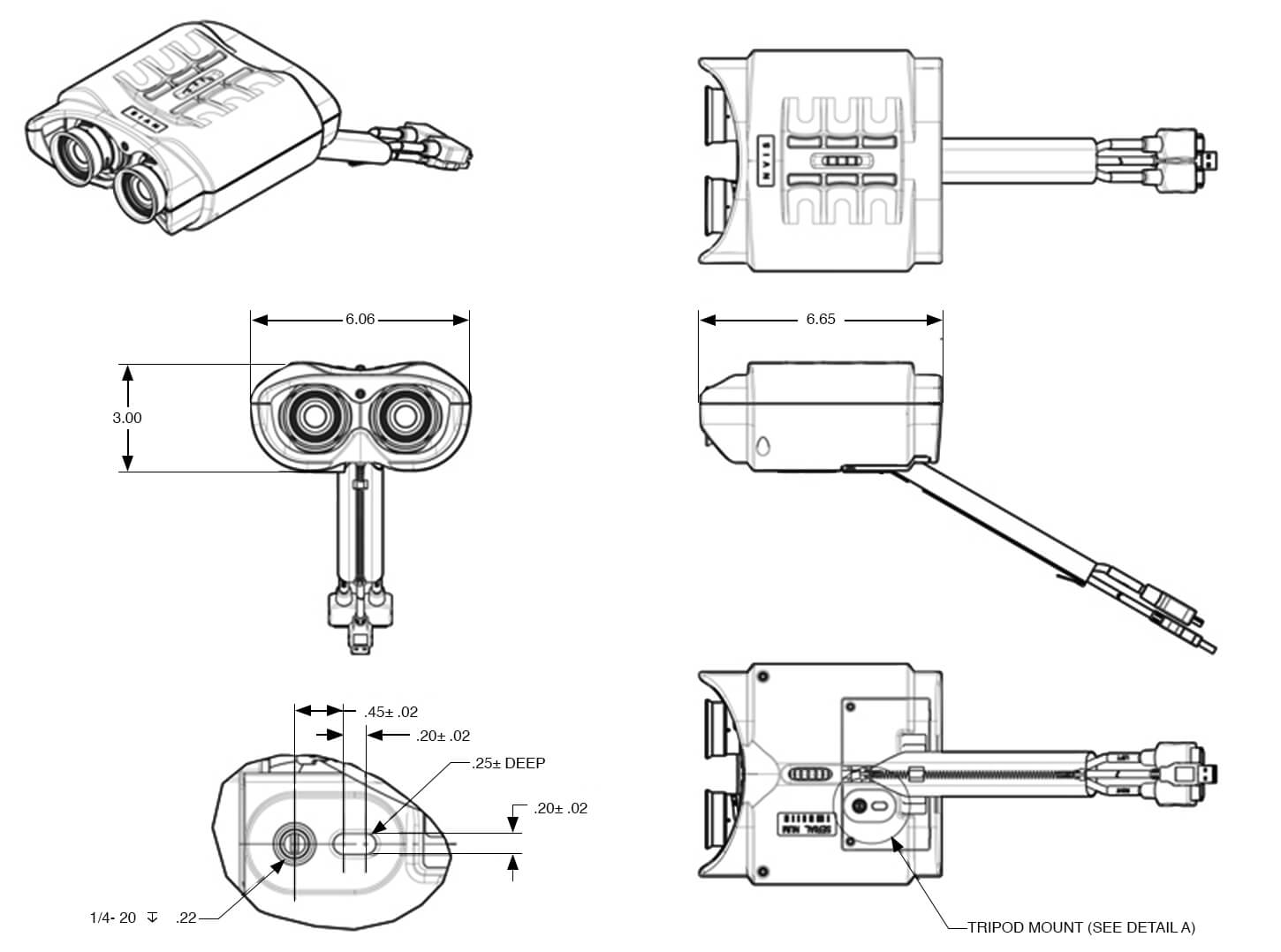

Technical Drawing
