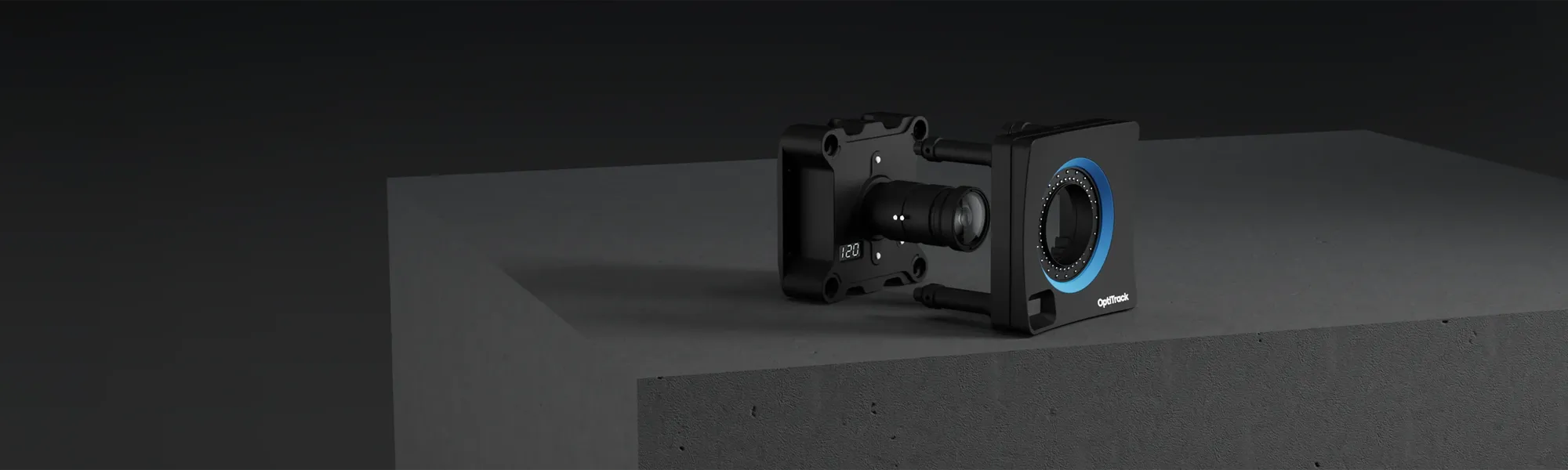

Versax 120
Versax 120
Built tough with an IP66 rating and versatile mounting options, making it perfect for any environment from the manufacturing floor to outdoor setups.
Water and Dust Resistant
Engineered for durability, the Versa thrives in tough conditions. Its IP66-rated design protects against dust and water, making it ideal for both outdoor and industrial applications.
Versax is Built to Evolve
Start with the core setup and expand its capabilities by adding the optional ring light as your projects grow. This flexible design allows you to take on new projects or expand capabilities without replacing the entire system.
Add on Accessories
Complete your Versa setup with customizable accessories, including multiple lens choices, ring light options, and a protective weather cover to keep water off of your lens. Build the ideal configuration to maximize performance and durability for any application.
So many mounting options.
The Versax provides flexibility with three mounting options: 1/4-20, M4x0.7, and M5x0.8, making it adaptable to a wide range of setups.
Versax is Feature Packed
Full Resolution Grayscale Reference Video
All Versax cameras can be used as a reference video source – with synchronized, calibrated overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
OEM & Computer Vision Integration
Incorporate Versax cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data
External Sync In/Out, Genlock, and Time Code
With the eSync 2, cameras sync to nearly any source, including Genlock and SMPTE Time Code, for precise, flexible hardware synchronization. Trigger force plates, EMGs, and DAQs, or manage events through inputs and software commands, with full customization available via OptiTrack’s free, open SDK.
On-Camera Status Indicator
Versax cameras can keep users informed with definable color LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes color. Have your own idea? Simple software controls help you make it so.
Zero Drift. Pure Precision.
Motive calibrates automatically and continuously with data collected during normal use of the system. No longer does your calibration degrade over time with changing temperatures or challenging building movement—it is always a “fresh” calibration.
Mix and Match Cameras
OptiTrack cameras work together seamlessly to build the perfect motion capture system for any use case.
Motive is behind every seamless workflow
OptiTrack’s Motive software delivers speed, precision, and ease of use, streamlining everything from calibration to real-time streaming, while tools like Aim Assist and auto-masking make even large system setups simple for one person.
- 3D accuracy referenced is typical for a 30’×30′ (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. ↩︎
- Frame Rate / Resolution / FOV (24mm lens) / FOV (18mm lens)
300 fps / 4096×3072 / 51°×39° / 65°×51°
480 fps / 4096×1904 / 51°×25° / 65°×33°
840 fps / 2048×1072 / 51°×14° / 65°×19°
1000 fps / 2048×896 / 51°×12° / 65°×16° ↩︎
